Product Description

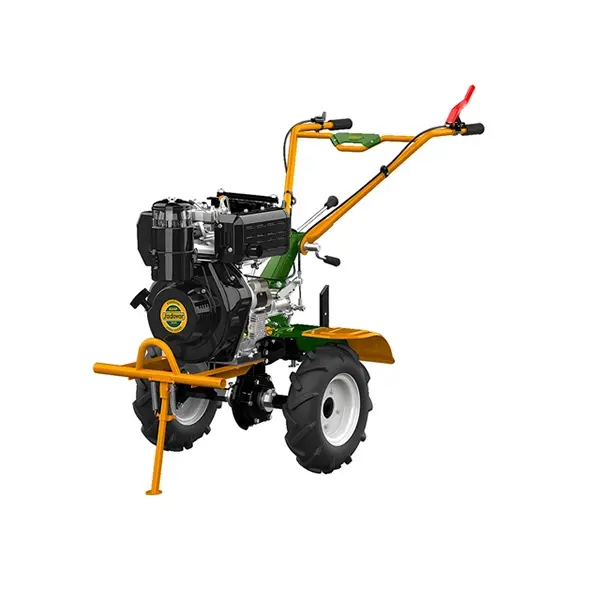

A diesel-powered tiller engine designed for soil cultivation and land preparation in farms, gardens, and agricultural areas. It features a powerful 10 HP engine and a gear-driven transmission system, providing stable performance and suitable capability to handle different soil types and agricultural working conditions.

Features

• Powerful Diesel Engine: Equipped with a 186FA diesel engine rated at 10 HP, delivering suitable torque for agricultural tasks.
• Wide Tilling Range: Adjustable tilling width from 1060 to 1350 mm to cover larger working areas.
• Effective Tilling Depth: Tilling depth reaches 150 mm or more to improve soil aeration.
• Gear Transmission System: Provides better control and stability during operation.
• Multiple Speeds: Includes forward and reverse gear options for easier maneuverability.
• Durable Blades: Equipped with 40 blades arranged in groups to ensure uniform soil cultivation.
• Dual Starting System: Features both recoil (manual) and electric start for greater operating flexibility.
• Heavy-Duty Structure: Gearbox made of cast iron for enhanced durability and long service life.
• Secure Packaging: Packed in a carton box to protect the unit during transportation and storage.

Technical Specifications

• Engine Type: Diesel
• Engine Power: 186FA (10 HP)
• Engine Displacement: 418 cc
• Rated Speed: 3600 rpm
• Maximum Torque: 18.7 N·m / 2500 rpm
• Tilling Width: 1060 – 1350 mm
• Tilling Depth: ≥ 150 mm
• Drive System: Gear drive
• Gear Shifting: -1, 0, 1, 2
• Blade Type: 40 blades (4 blades × 5 groups – 4+1)
• Starting System: Manual + Electric
• Tire Type: 4.00-8
• Fuel Tank Capacity: 5.5 L
• Transmission Oil Capacity: 1.65 L
• Transmission Housing: Cast iron
• Packaging: Carton box

Applications

• Soil tilling and cultivation
• Land preparation for planting
• Use in farms and gardens
• Medium to heavy agricultural operations
